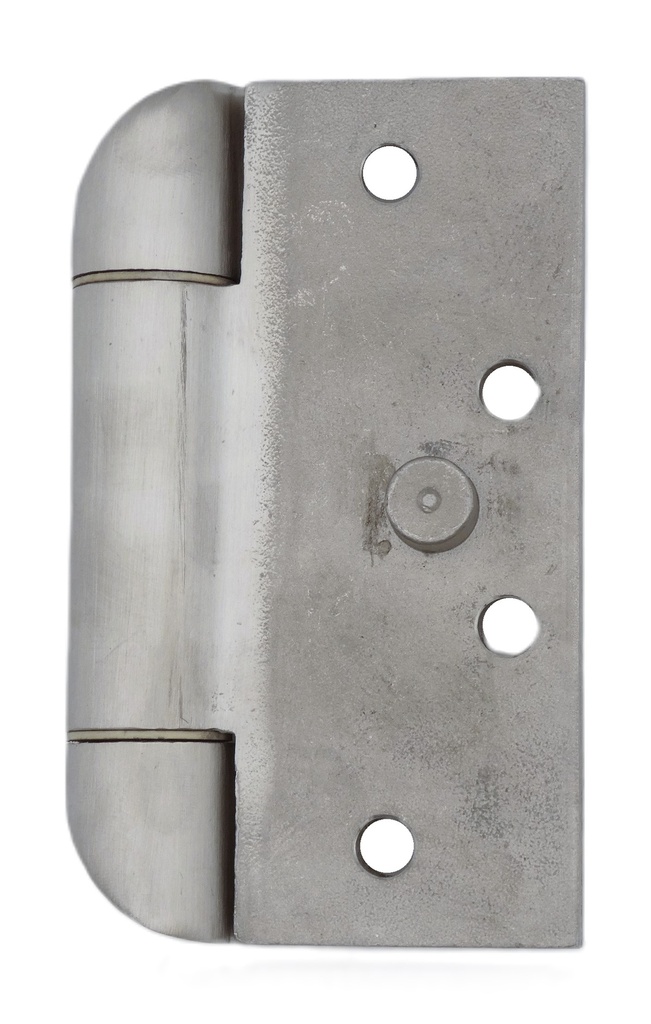

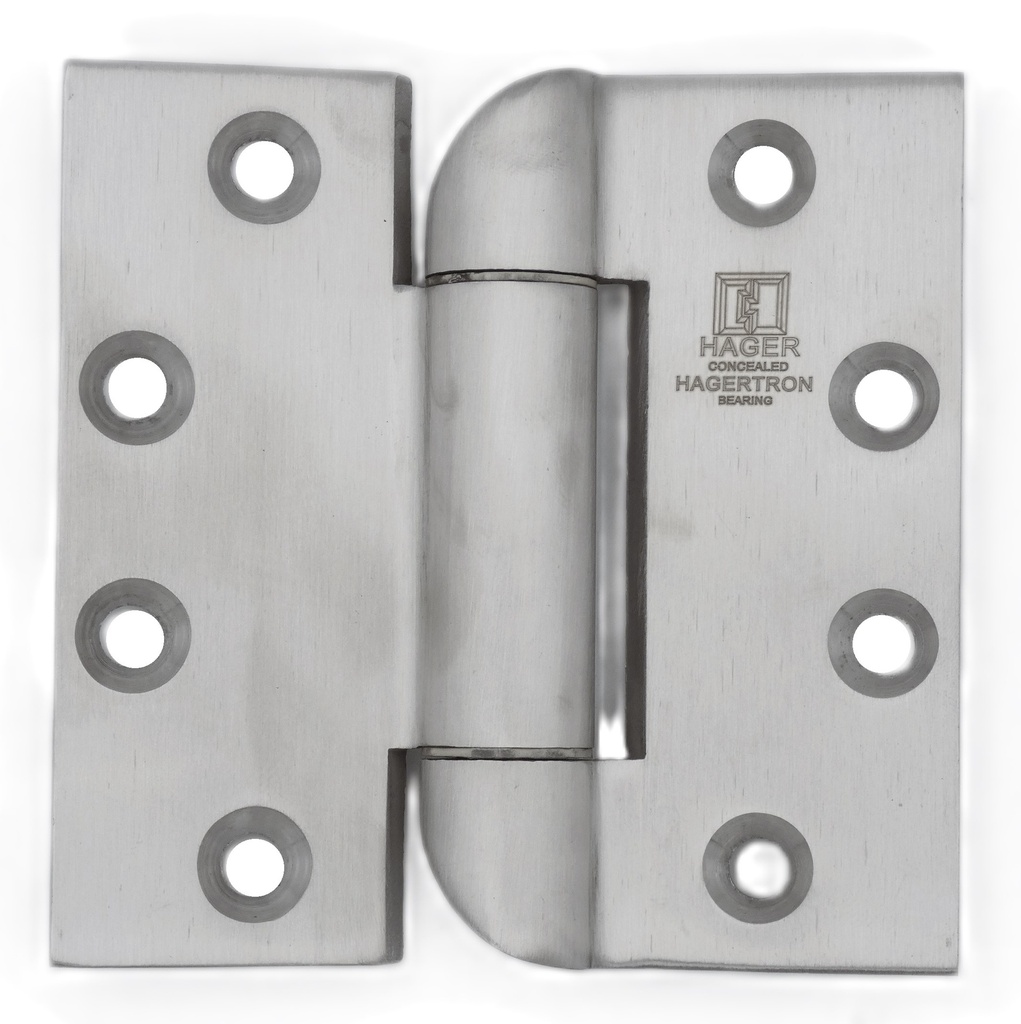

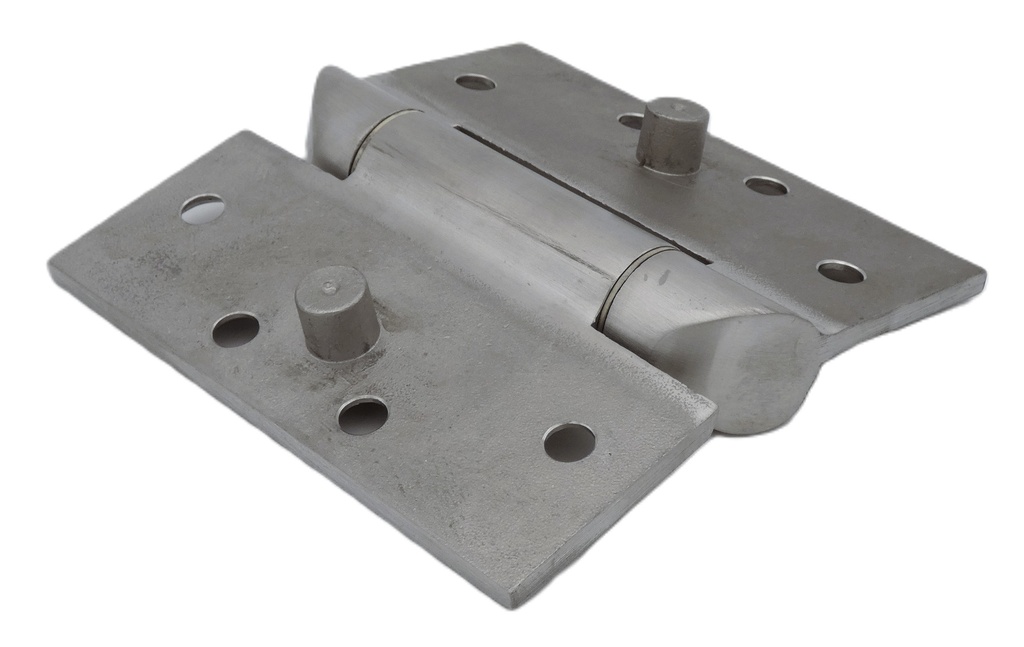

Hager IHT-HB953 4.5" x 4.5" Institutional Stainless Steel Heavy Weight Hinge with Reverse Security Stud and Hospital Tip
Hager IHTHB953 Stainless Steel with Reverse Security Stud and Hospital Tip. Hinges are priced as Each.
Hager IHT-HB953 4.5" x 4.5" Institutional Stainless Steel Heavy Weight Hinge with Reverse Security Stud and Hospital Tip
- Full Mortise
- Concealed Bearings - Hagertron Bearings
- Three Knuckle
- Heavy Weight - .187 Thickness
- For Institutional or Detention applications
- Size - 4-1/2" x 4-1/2"
- Stainless steel with stainless steel pin (ANSI A5111)
- Two concealed maintenance free bearings
- Investment cast
- Security Torx Flat Head Machine Screws - 1/2" x 1/4-20
- Welded, Anti-Ligature, Hospital Tip and Reverse Security Stud are standard
- Additional options include electric monitor (EMN), electric through wire (ETW), and electric through wire and monitor (ETM)
- For use on heavy weight doors ranging from 250-600 lbs.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing, RSS (Reverse Safety Stud), HT (Hospital Tip) |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
