Securitron MK2 Mortise Key Switch, Momentary DPDT Single Gang with LED Indicator less Mortise Cylinder

The MK Mortise Key Switch supports electric lock control, alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".

Product Features

• 1-1/8" Length, 26D Finish
• 5 Amp rated plunger switch

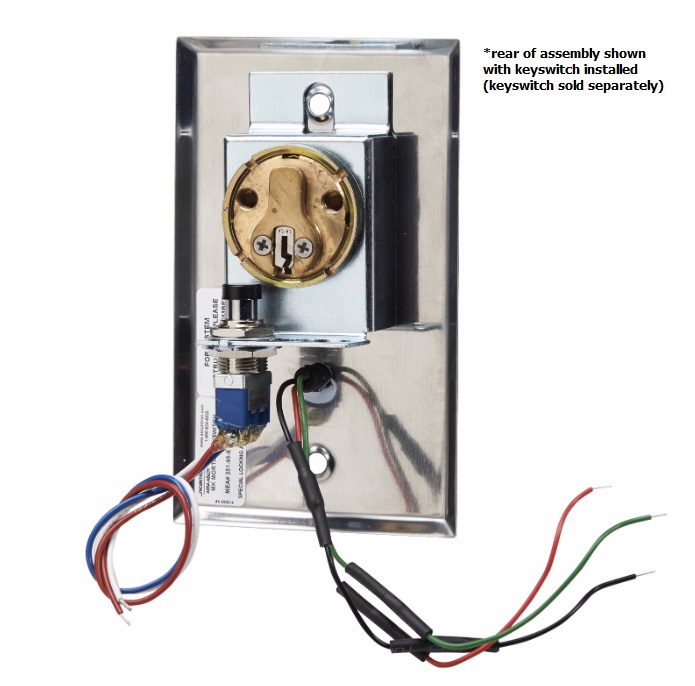

• Additional switch position on backing bracket allows another switch to be activated by turning the key in the opposite direction

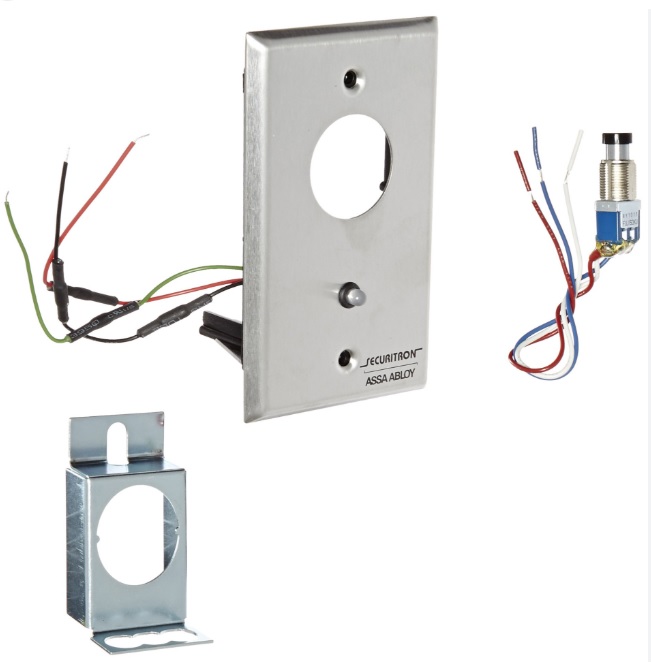

• Backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
• Cylinder available for use in the MK
• Includes anti-tamper screws
• SC Keyway

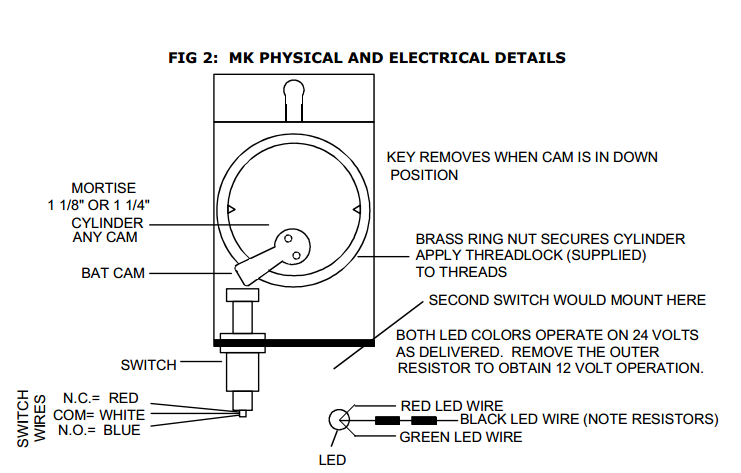

• Standard with 12 or 24 VDC bi-color LED

General

• Contact Action : Momentary or Alternate
• Audible Indicator : Optional
• LED : Bi-color
• Device Options : Key Switch
• Illumination : Yes

Electrical

• Amps : 5
• Switch : SPDT or DPDT
• Voltage : 12/24 VDC

Weights & Dimensions

• Height : 4-1/2
• Width : 2-3/4
• Depth : 0-5/8

Application

• Mounting : Single Gang or Narrow Stile

Environmental

• Maximum Operating Temperature (° F) : 110
• Minimum Operating Temperature (° F) : 32
• Weather Resistance : Indoor use only
